EMEA & APAC standard Cat6 mobile modem
It supports mobile networks in the United Kingdom, European countries, Australia, New Zealand, Africa, India, Brazil, South East Asia, and the Middle East countries.
Sale!

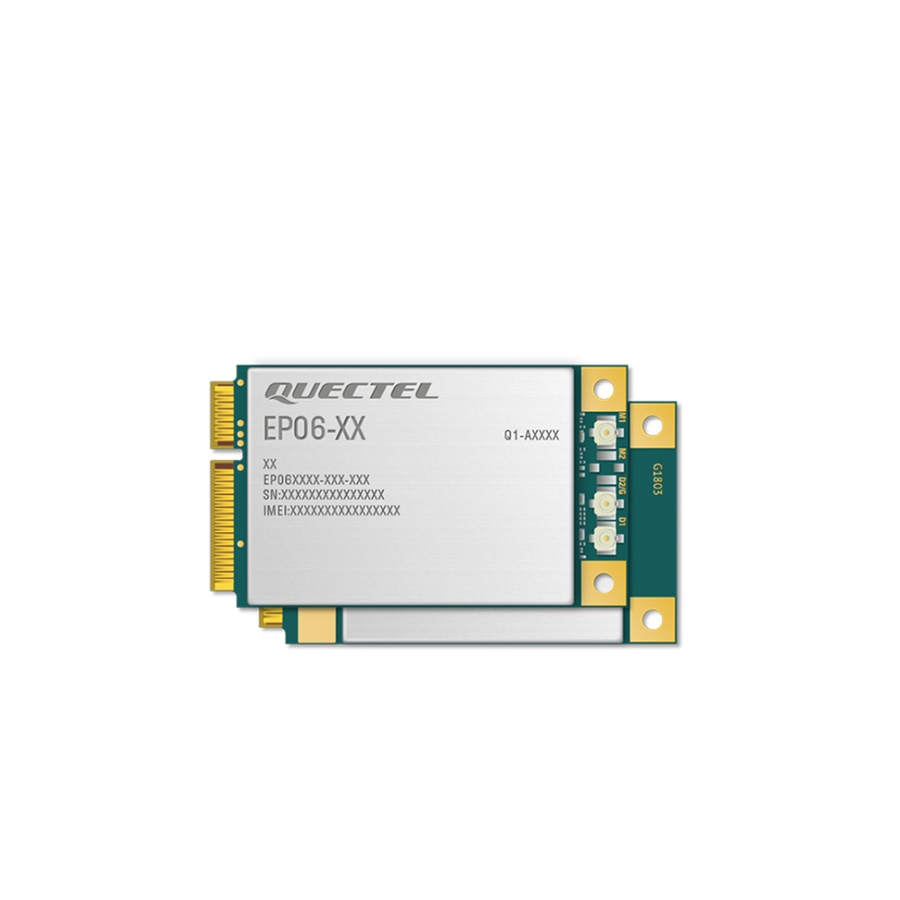

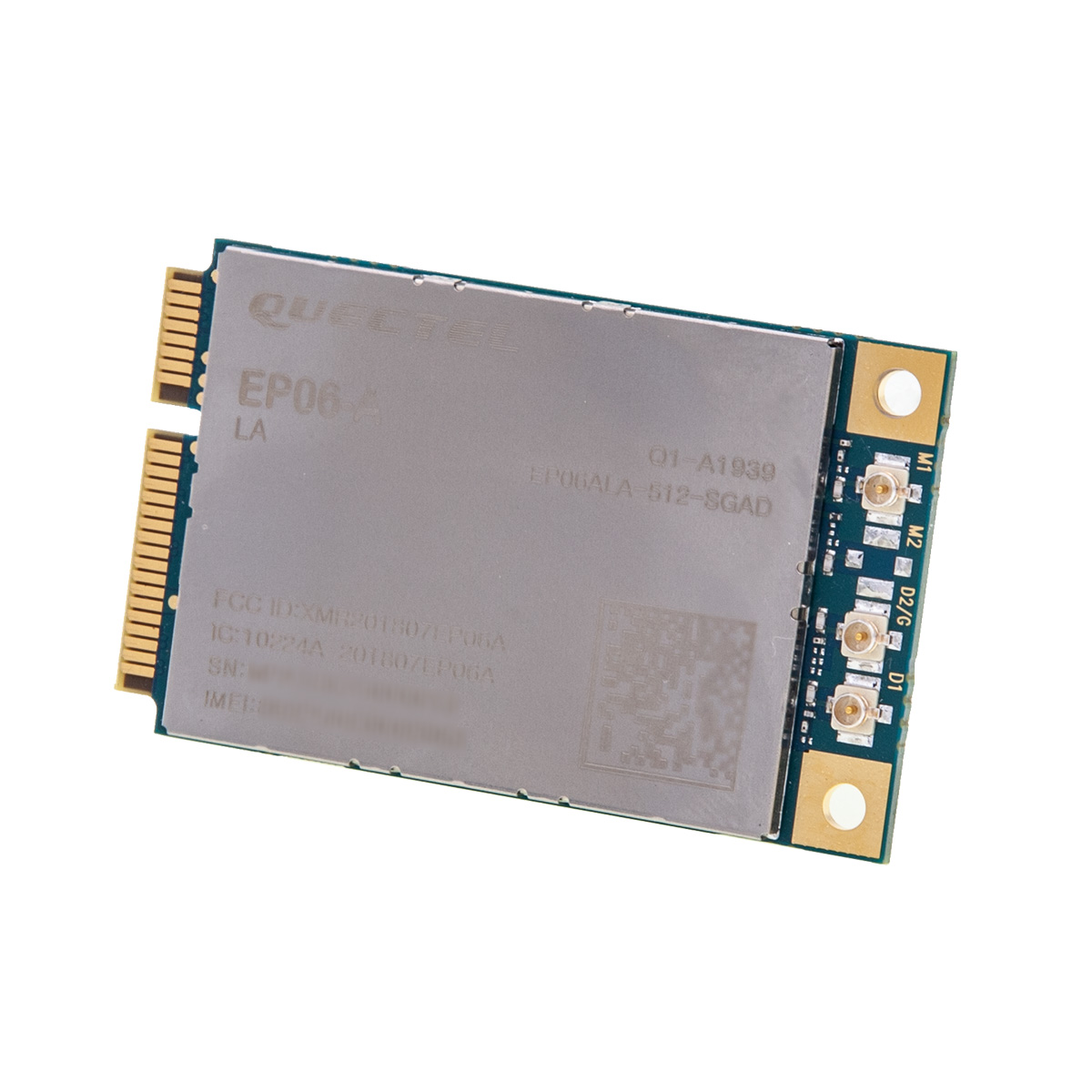

Quectel LTE-A Cat6 EP06E 4G module
Original price was: US$69.00.US$59.00Current price is: US$59.00.
The EP06-E is an LTE-A category 6 module, which meets the 3GPP Release 11 standard.
It supports LTE-FDD, LTE-TDD, DC-HSDPA, HSPA+, HSDPA, HSUPA, and WCDMA.
The EP06-E is optimized for use in EMEA, APAC, and Brazil.
LTE-A category 6 EP06-E module

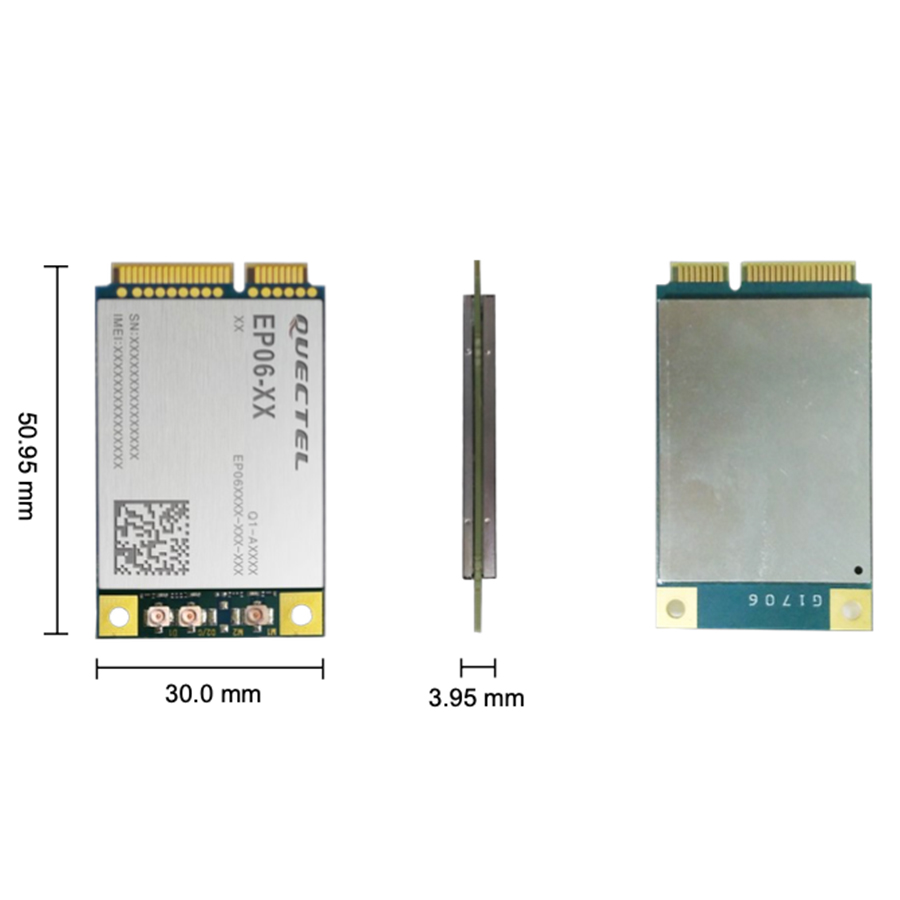

30.0mm × 50.95mm × 3.95mm
Max. 300Mbps downlink / 50Mbps uplink under LTE
Mini PCIe form factor
Extended temperature range of -40°C to +85°C
Quectel EP06-E is a series of LTE category 6 modules optimized specially for M2M and IoT applications. Adopting the 3GPP Rel-11 LTE technology, it delivers maximum data rates of 300 Mbps downlink and 50 Mbps uplink.
The module also supports Qualcomm® IZat™ location technology Gen8C Lite (GPS, GLONASS, BeiDou/Compass, Galileo and QZSS), and the optional multi-constellation GNSS receiver greatly simplifies product design, and provides quicker, more accurate and dependable positioning.
A wide range of internet protocols, industry-standard interfaces and functionalities (such as USB serial drivers for Windows 7/8/8.1/10, Linux, and Android) allow the module to serve a wide range of IoT applications including industrial routers, home gateways, set top boxes, industrial PDAs, rugged tablet PCs, and digital signage.
Quectel EP06-E LTE A Mini PCIe Module -EP06-E
| LTE Category: | CAT.6 (3GPP E-UTRA Release 11) |
| 4G FDD Bands: | B1/B3/B5/B7/B8/B20/B28/B32Rx Download max 300Mbps / Upload max 50Mbps |
| 4G TDD Bands: | B38/B40/B41 Download max 260Mbps / Upload max 28Mbps |
| 2xCA Carrier Aggregation: |
B1+B1/B5/B8/B20/B28 B3+B3/B5/B7/B8/B20/B28 B7+B5/B7/B8/B20/B28 B20+B32Rx | B38+B38 B40+B40 | B41+B41 |
| 3G Bands: | B1/B/3B5/B8 DC-HSDPA: DL Max 42Mbps HSUPA: UL Max 5.76Mbps WCDMA: DL 384Kbps / UL 384Kbps |
| Bandwidth: | 1.4/3/5/10/15/20/40(2xCA)MHz |
| Support Antenna: | DL MIMO, supports Rx-diversity |
| Temperature: | Working: -40°C ~ +80°C |
| Working Area: | EMEA: Europe, the Middle East and Africa APAC: Asia-Pacific (Excluding Japan and CMCC) and Brazil |
| Certification: | CE / RCM / GCF / Deutsche |
