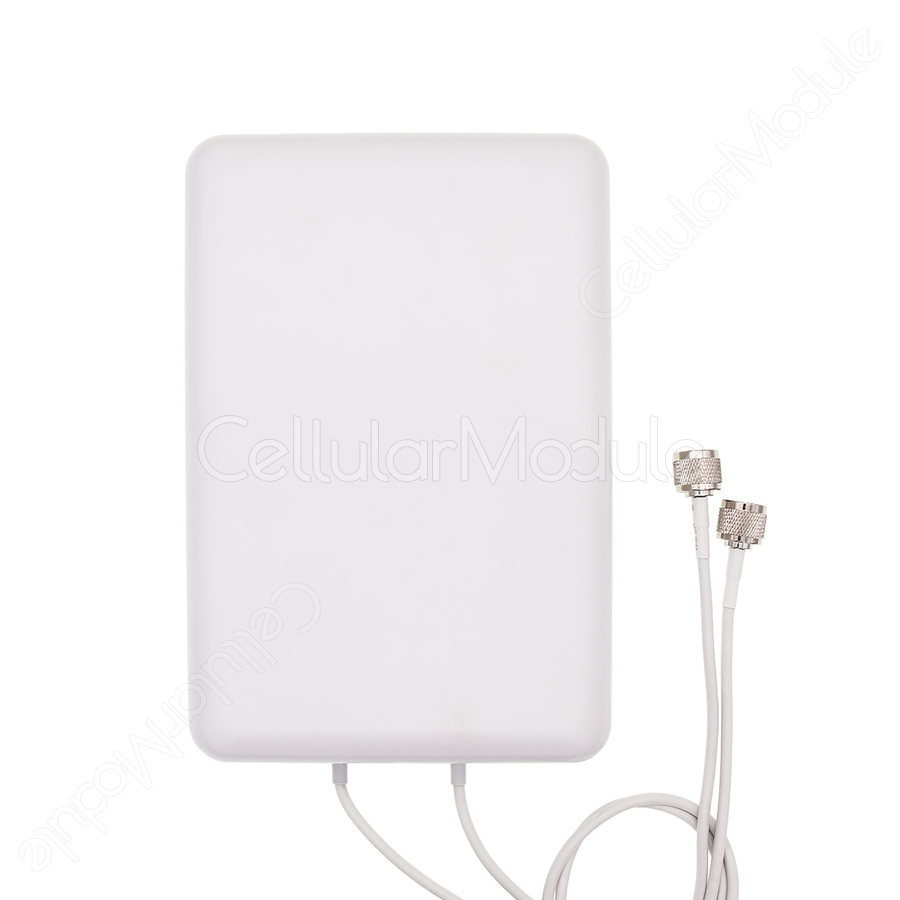

Outdoor 4G LTE MIMO Panel Antenna
US$40.00
Dual-polarized 4G LTE MIMO panel antenna to improve the cellular signal reception on the 4G routers. Ideal for improves 4G MIMO router signal reception in the weak signal areas.
Wideband cellular frequency 698~2700MHz
Dual-polarized 4G LTE MIMO antenna
High-gain 6~8dBi and low V.S.W.R <1.5
Directional panel antenna with wide beamwidth
Outdoor antenna with mounting kit
Got a weak 3G/4G signals? Upgrade the cellular antenna on your 4G MIMO router!
Improve the cellular signal reception for the 4G MIMO Routers. The directional panel antenna is dual-polarized 4G LTE antenna works on the full range of 4G LTE mobile frequencies 698~2700MHz. It can work on universal range 2G/3G/4G mobile networks.

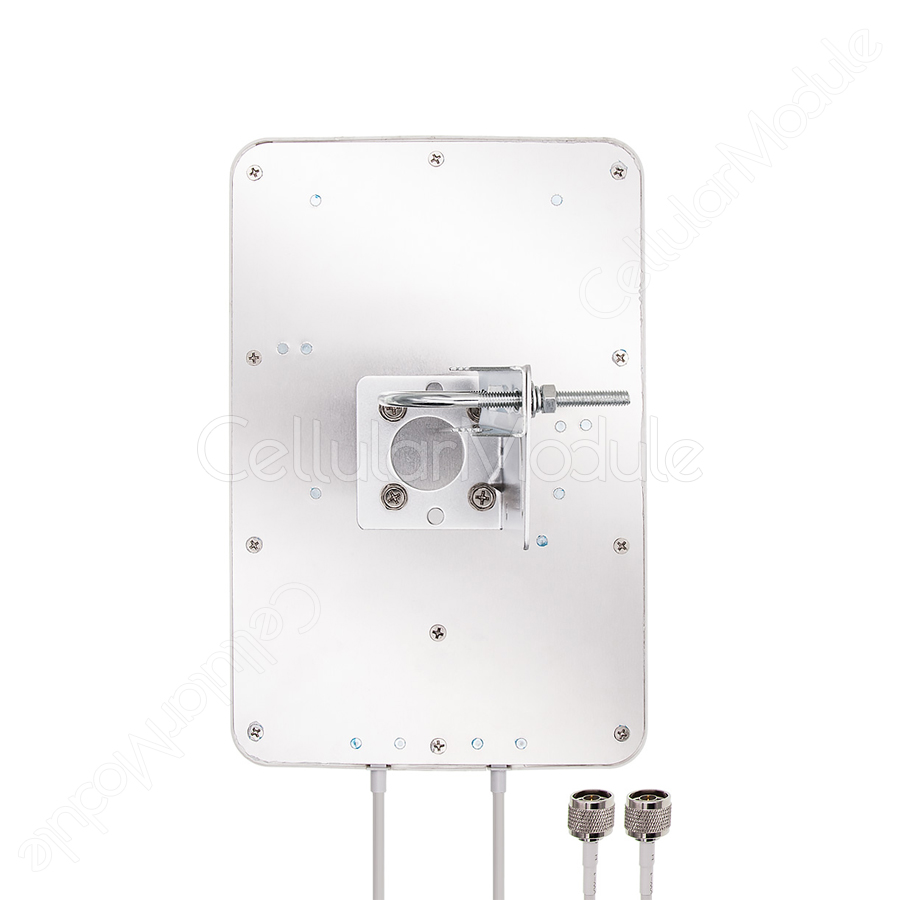

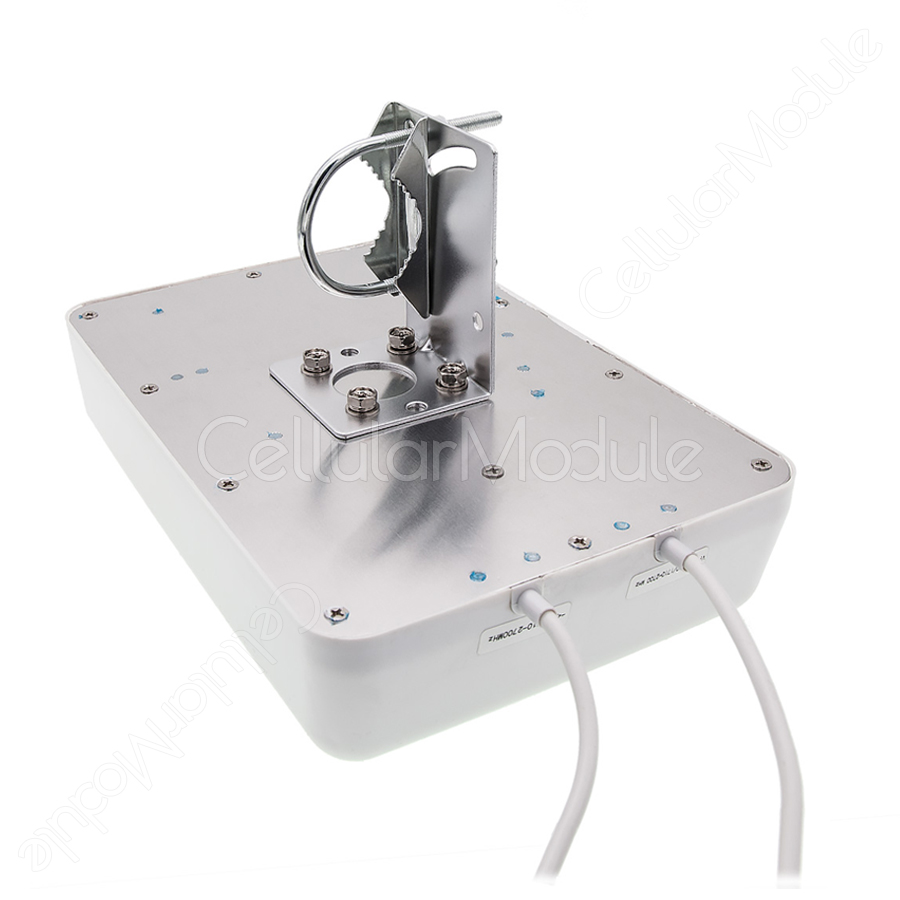

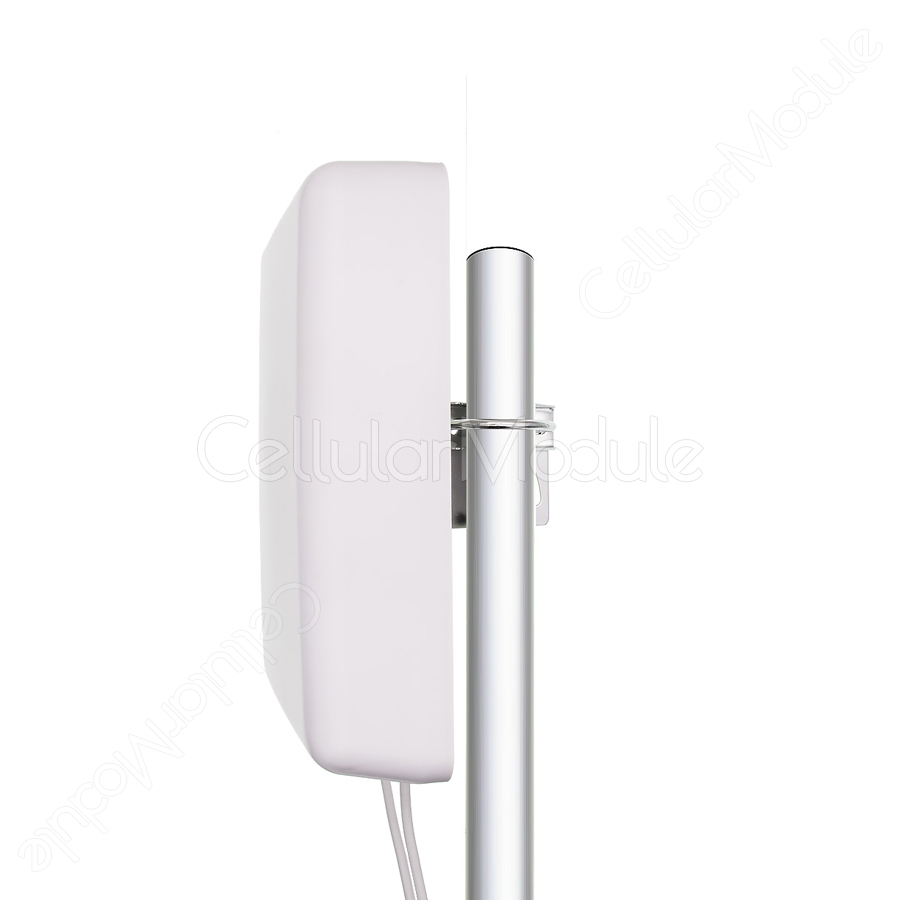

Sealed in the plastic case, the MIMO LTE panel antenna is the ideal directional antenna for using in the outdoors. The default mounting kit offers a convient solution to install the antenna on a pole with diameter 30~50mm and changing the antenna direction easily.
The directional 4G LTE MIMO panel antenna allows you to point towards the nearest cellular tower or the strongest cellular signal source, and effectively increase the signal reception ability for your 4G routers.
4G MIMO PANEL ANTENNA SPECIFICATIONS
| Frequency | 698~960/1700~2700MHz |
| Gain | 6~8dBi |
| V.S.W.R | ≤ 1.5 |
| Beamwidth | Horizontal 85±10° / Vertical 65±10° |
| Max Power | 100 Watt |
| Lighting Protection | Direct ground |
| Connector | 2 x N-male connectors |
| Radome Material | PVC |
| Radiating Element | Copper (CU) |
| Dimension | 280x180x60mm |
| Weight | 625 gram |
| Working Temperature | -40~70 degree |
| Working Humidity | < 95% |
Horizontal Working Pattern
Vertical Working Pattern
Coaxial Cable
The default coaxial cable on 4G LTE MIMO panel antenna is RG58 cable with a 60cm length. The default connector is N-male type. You can directly install the antenna on EZR30 outdoor 4G router. And you can choose to add the extra 5-meter coaxial cable for connect to EZR20 commercial 4G router.

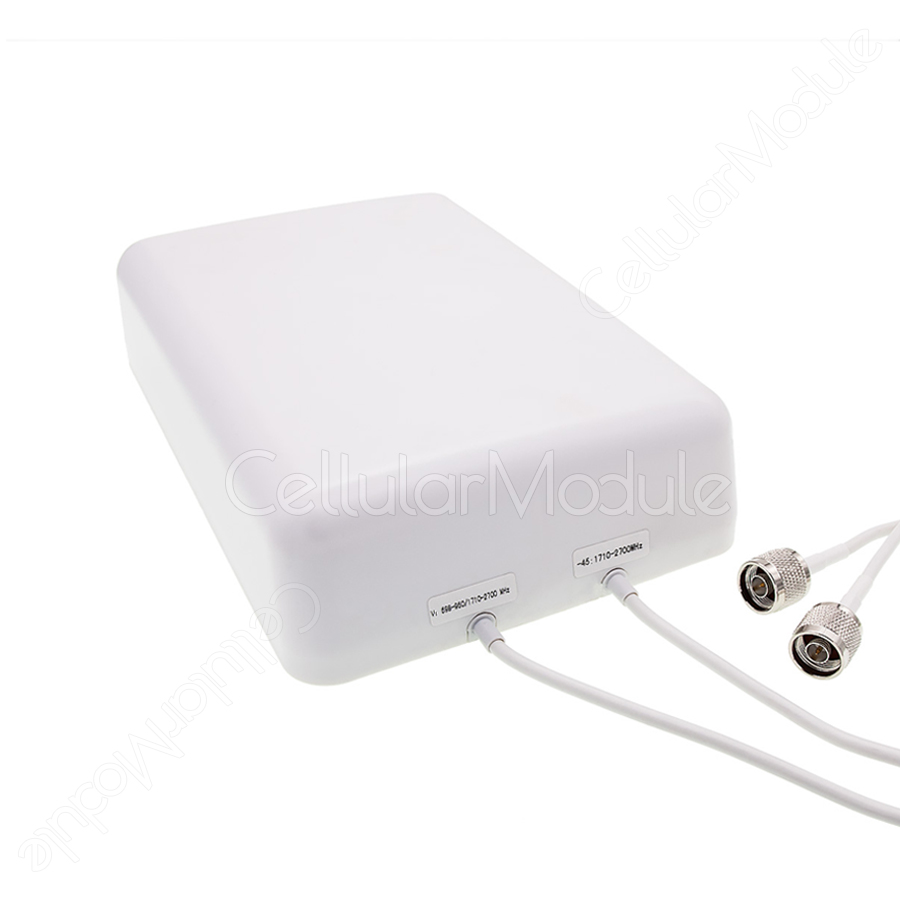

Connectors
The default connector on 4G LTE MMO antenna is N-male type. If you want to connect the antenna to other types of connectors, please use a jumper cable or contact us to customize the connector type.
