Omni Ceiling Indoor Antenna 698~2700MHz
US$15.00
Omni Ceiling Antenna is a 698~2700MHz multi-band antenna that supports all mobile phone brands. Including GSM900, GSM850, GSM1800, GSM1900 and 3G (UMTS/WCDMA).

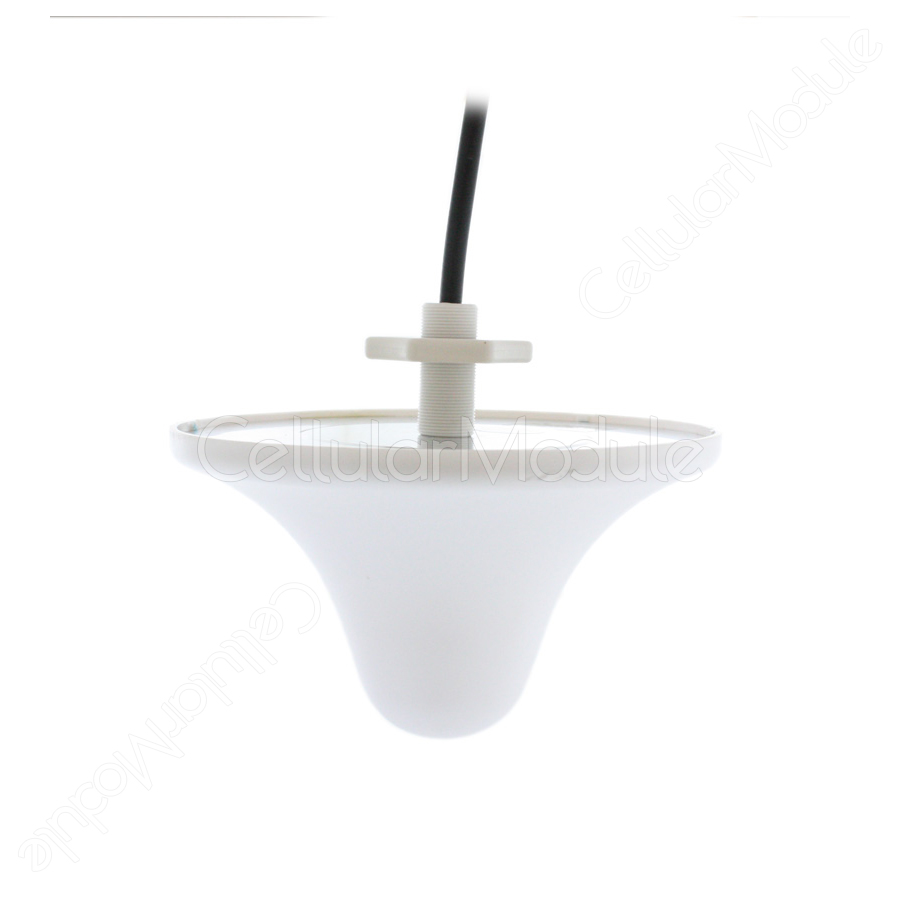

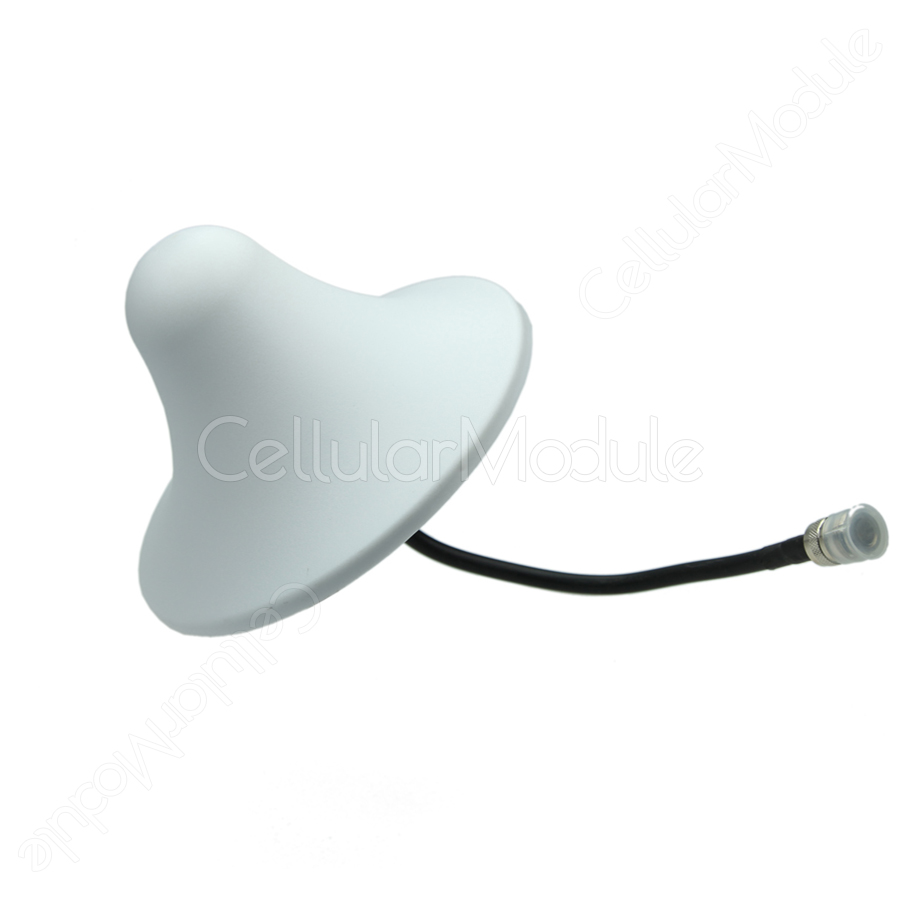

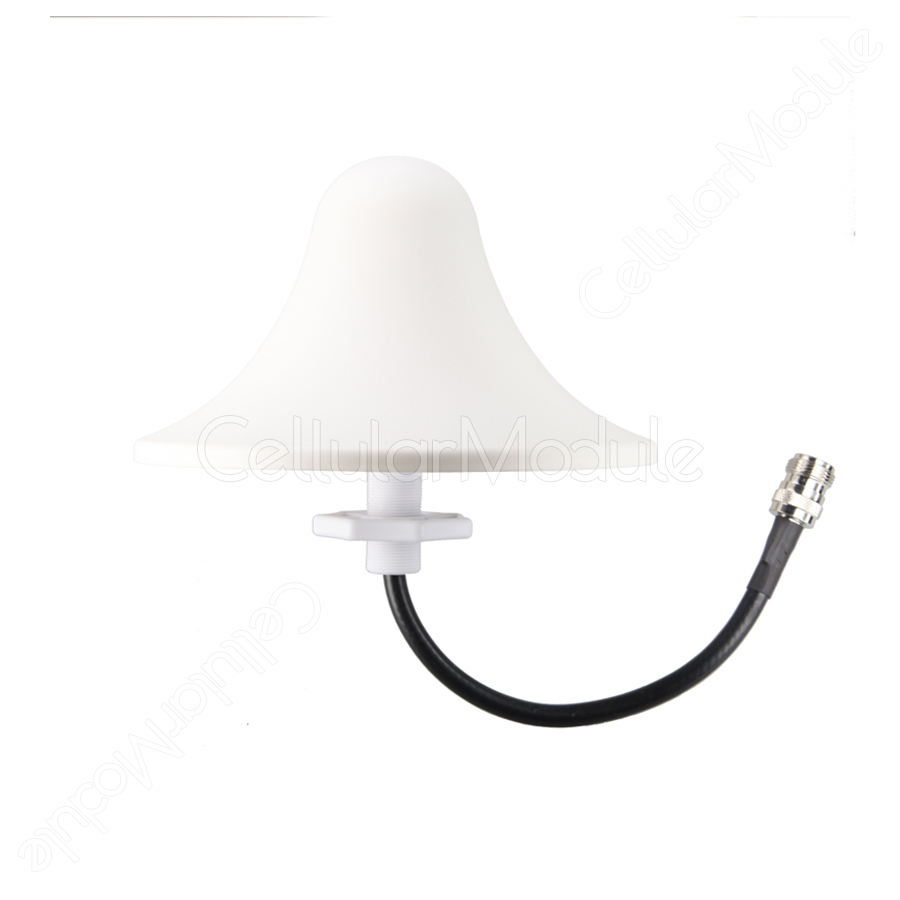

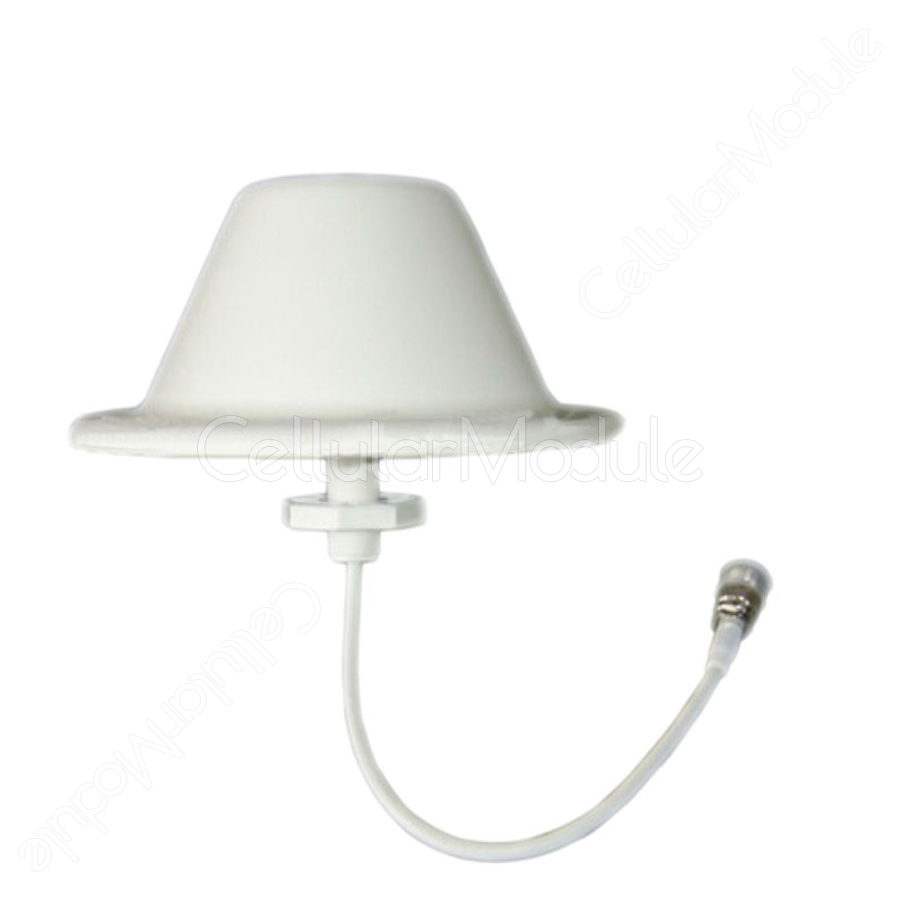

The antenna cover is made of strong white color PVC material. Radiating element material is high-quality copper.
Multi-band Antenna 698~2700MHz
High Gain Up to 3dBi

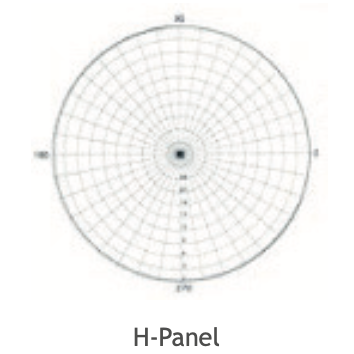

Omni-directional Coverage

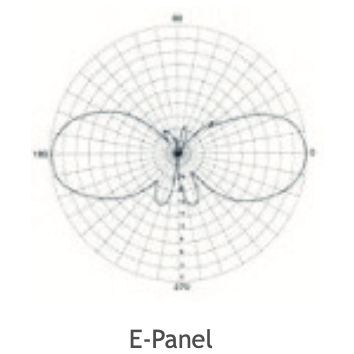

Vertical Polarization
Water Proof PVC Cover
Omni ceiling antenna is designed to be mounted in a suspended ceiling and provides better indoor coverage than a standard whip antenna. It receives signals from all sides. They are designed for central locations with 360º coverage.
Indoor ceiling antenna is compatible with GSM900, GSM1800, and 3G UMTS 2100 networks. This indoor ceiling aerial is suitable for almost all of the repeater kits.

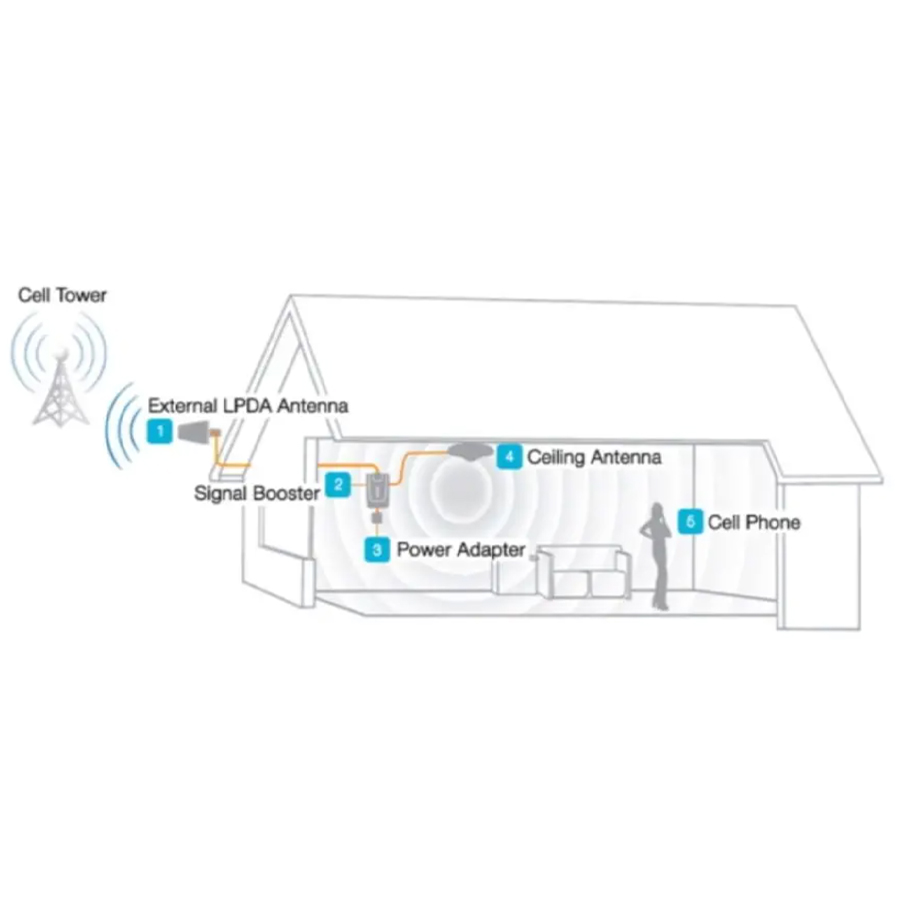

The Omni ceiling aerial looks like a smoke detector and can combine with any of our repeater kits. Multiband Omni antenna can work with the signal splitter to provide coverage to more than one area with a single base unit repeater.
Omni Ceiling Indoor Antenna
| SKU | WRA07 |
| Frequency | 698~960/1700~2700MHz |
| Polorization | Vertical |
| Gain | 3 dBi |
| VSWR | <= 2.0 |
| Max Power | 100 Watt |
| Impendance | 50 ohm |
| Lighting Protection | Direct Ground |
| Connector | N Female |
| Radome Material | PVC |
| Radome Color | White |
| Radiating Element | Copper (CU) |
| Dimension | 160x160mm |
| Weight | 210 Gram |
| Temperature | -40~70 Degree |
