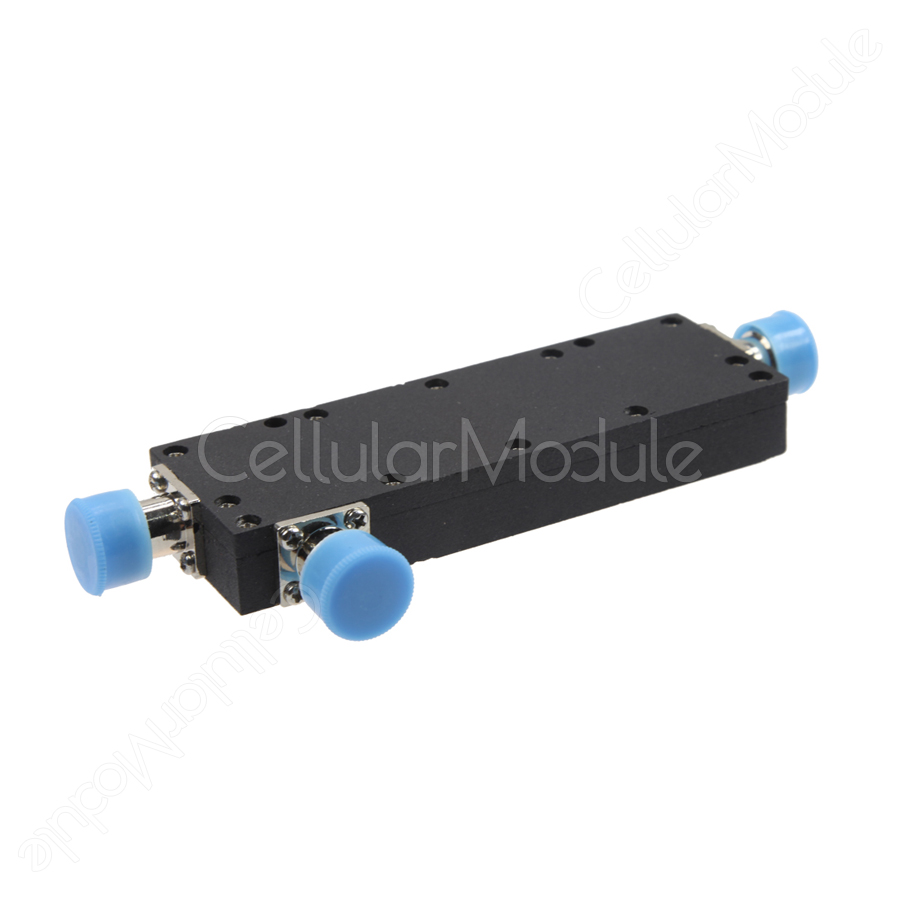

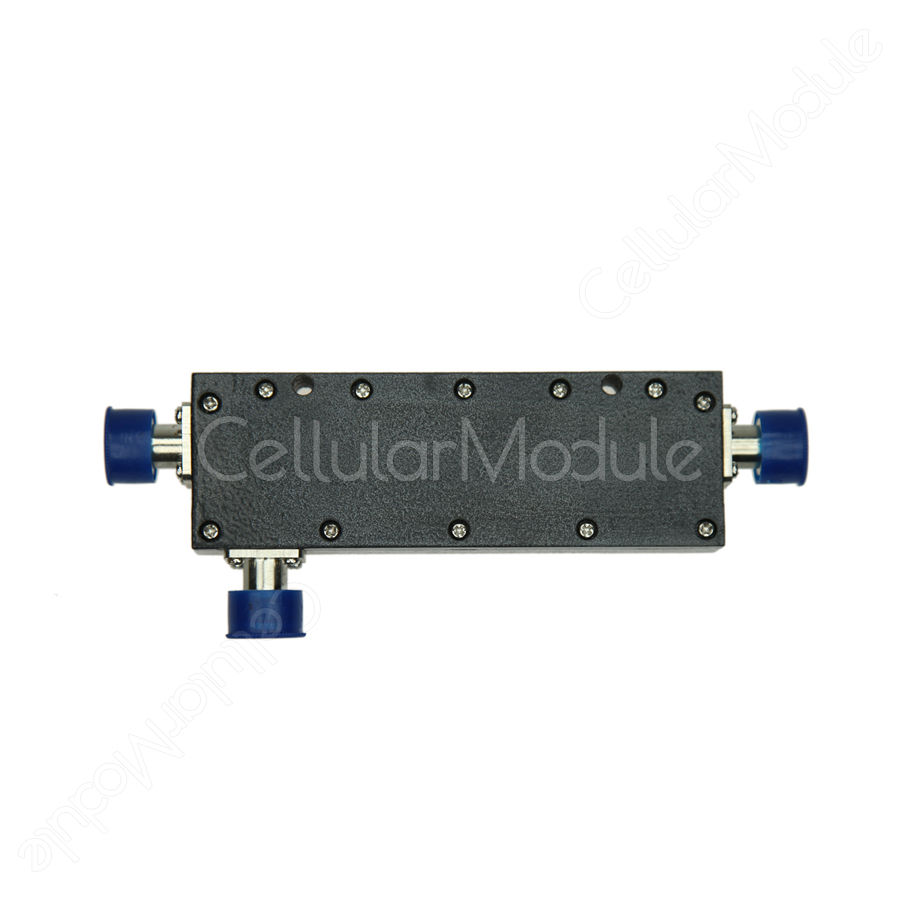

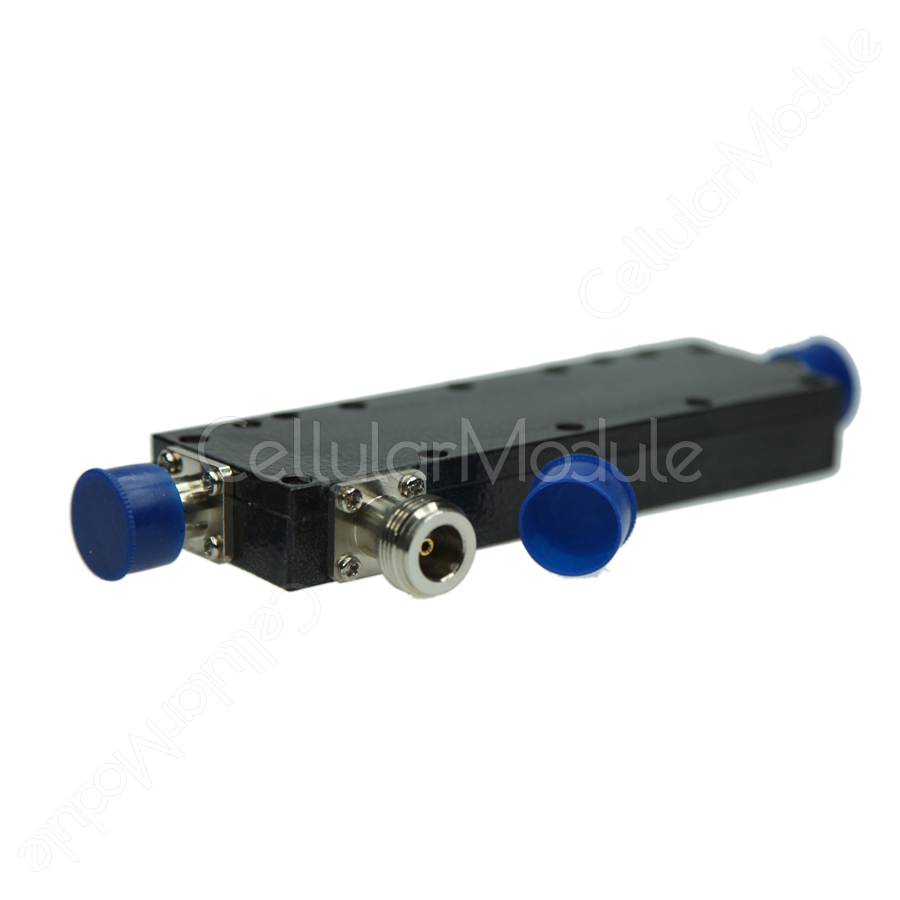

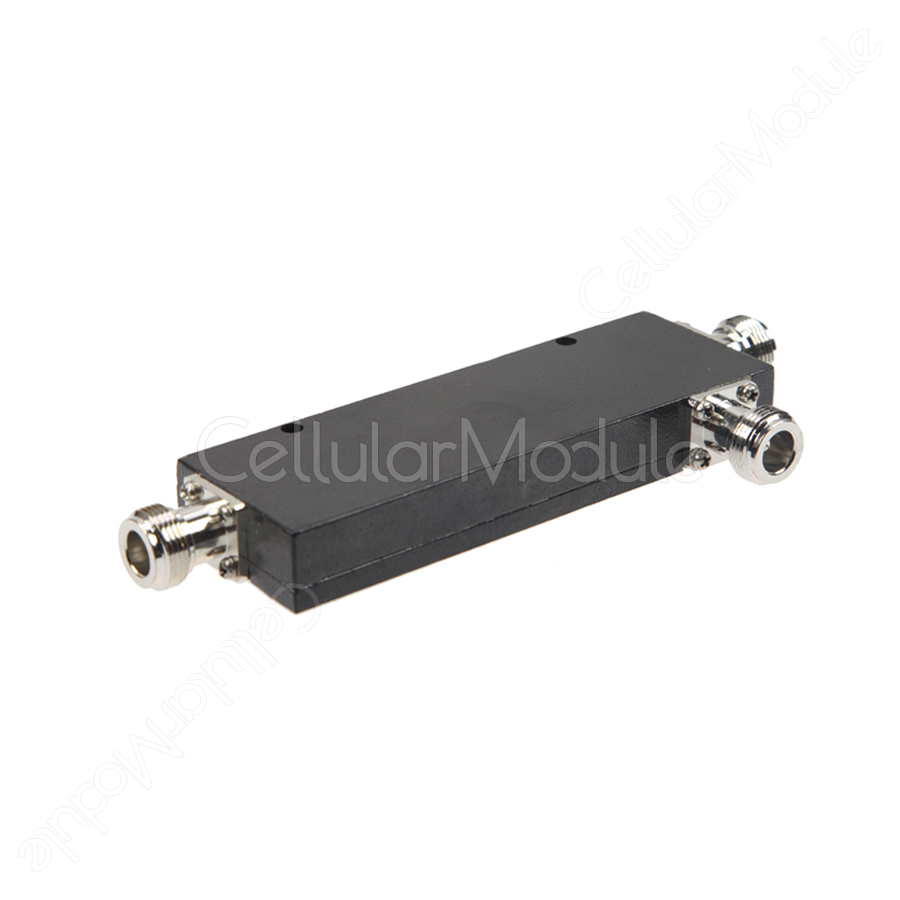

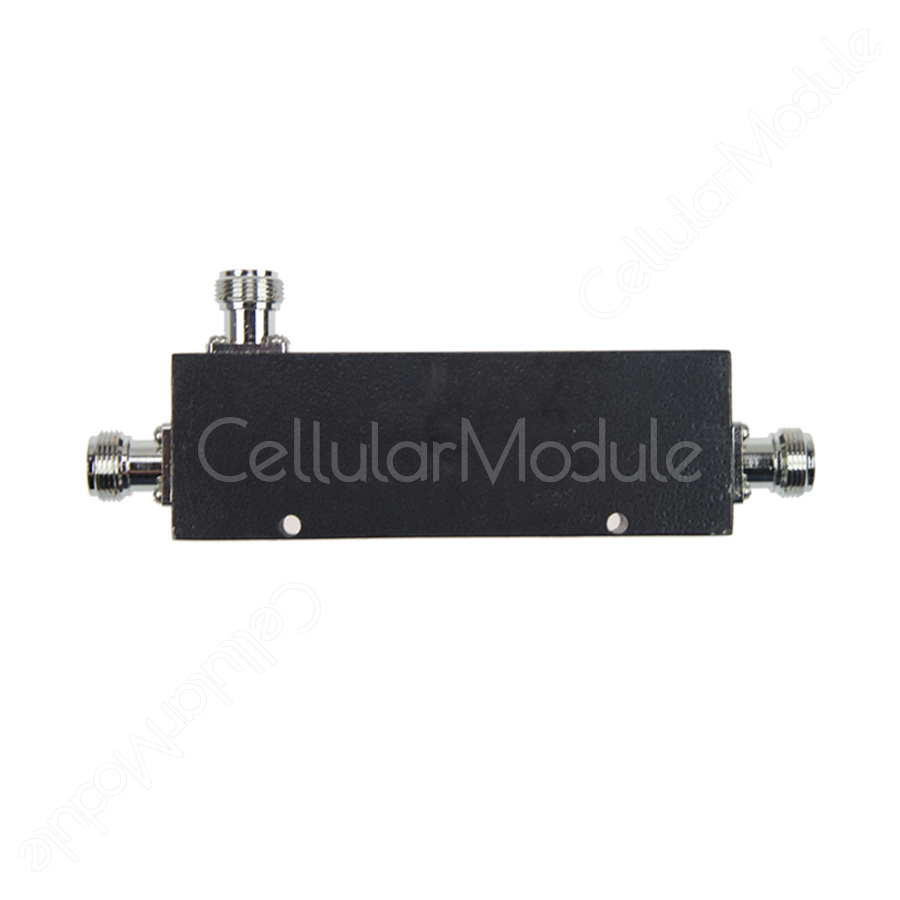

N-Female Coaxial Cavity Coupler
£11.10
The cavity coupler is used to distribute wired RF signals, supports signal isolation, separation, and mixing for various applications.
-5dB , -7dB or -10dB attenuator inside
Wide Band Frequency (800~2500 MHz)
Low VSWR ≦ 1.25
1 Input & 2 Outputs
Applications: RF, Walkie Talkies, Amplifiers, Indoor DAS, etc
The coaxial coupler is a kind of input signal energy through the electric field, magnetic field coupling distribution out part of the coupling end output, the remaining part of the output end, to complete the power distribution components.

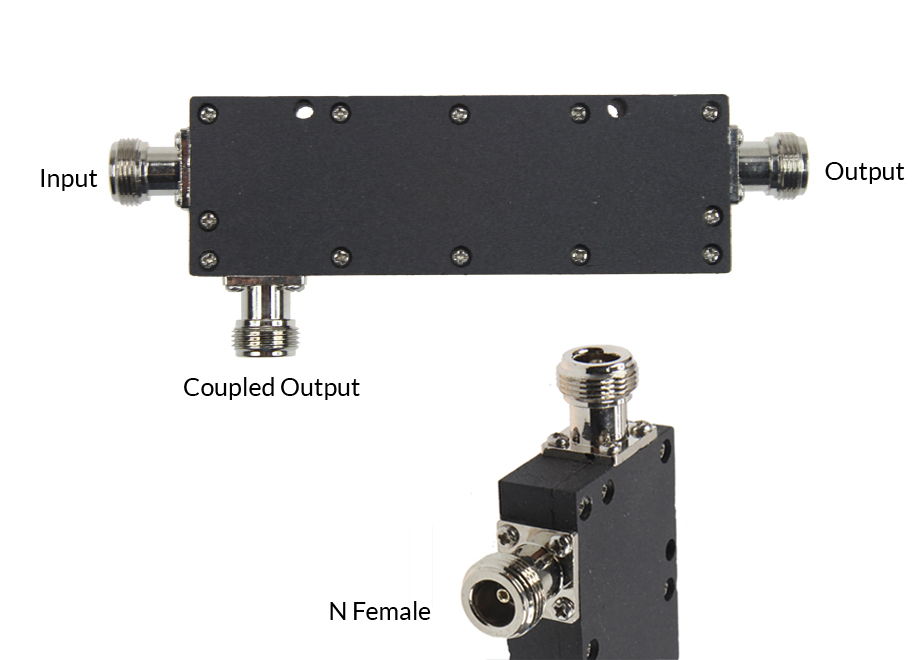

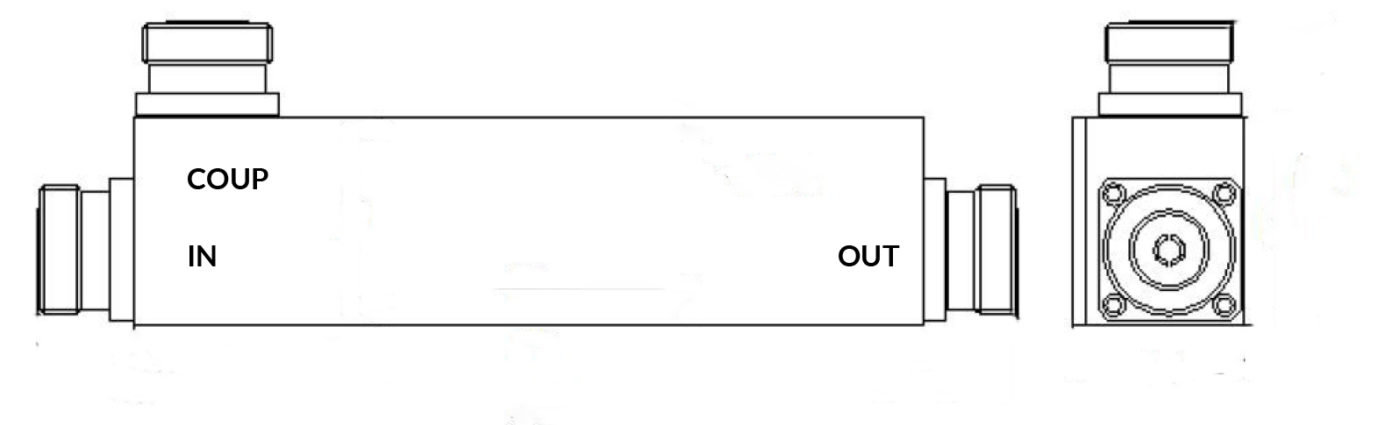

EZ1812 coupler is directional and the connector is N-type Female, the left port is Input, the top port is coupling end output and the right port is Output.
The optimized internal structure and circuit ensure minimum signal losses.
N Female coupler has -5dB, -7dB, -10dB, please select the appropriate coupler.
Specifications
| Attenuator | -5dB, -7dB, -10dB |
| Frequency | 800~2500 MHz |
| Power | 200 Watt |
| Connector | N-Female |
| VSWR | ≦ 1.25 |
| Impedance | 50 ohm |
| Fluctuation | ≦ 0.3 dB |
| Amplitude Balance | ≦ 0.3 dB |
| Humidity | < 95% |
| Working Temperature | -35°C~ 75°C |
| Dimension | 152 x 55 x 17mm |
| Package Size | 174 x 75 x 30mm |
