| SKU: | EZ10101-E | EZ10101-EU | EZ10101-EUX | EZ10101-A | EZ10101-V |
| Description: | EC21-E Mini PCIe | EC21-EU Mini PCIe | EC21-EUX Mini PCIe | EC21-A Mini PCIe | EC21-V Mini PCIe |
| LTE Category: | LTE Cat 1 | LTE Cat 1 | LTE Cat 1 | LTE Cat 1 | LTE Cat 1 |
| LTE-FDD | B1/B3/B5/B7/B8/B20 | B1/B3/B7/B8/B20/B28A | B1/B3/B7/B8/B20/B28A | B2/B4/B12 | B4/B13 |
| WCDMA | B1/B5/B8 | B1/B8 | B1/B8 | B2/B4/B5 | |
| GSM/EDGE | B3/B8 | B3/B8 | B3/B8 | ||
| GNSS | GPS/GLONASS/BeiDou (Compass)/Galileo/QZSS (Optional) |
GPS/GLONASS/BeiDou (Compass)/Galileo/QZSS (Optional) |
GPS/GLONASS/BeiDou (Compass)/ Galileo/QZSS (Optional) |
GPS/GLONASS/BeiDou (Compass)/Galileo/QZSS (Optional) |
GPS/GLONASS/BeiDou (Compass)/Galileo/QZSS (Optional) |
| Working Area: | EMEA/Thailand/India | EMEA/Thailand | EMEA/Thailand | North America | Verizon Only |
| SKU: | EZ10101-AUT | EZ10101-AU | EZ10101-AUX | EZ10101-KL | EZ10101-J |
| Description: | EC21-AUT Mini PCIe | EC21-AU Mini PCIe | EC21-AUX Mini PCIe | EC21-KL Mini PCIe | EC21-J Mini PCIe |
| LTE Category: | LTE Cat 1 | LTE Cat 1 | LTE Cat 1 | LTE Cat 1 | LTE Cat 1 |
| LTE-FDD | B1/B3/B5/B7/B28 | B1/B2①/B3/B4/B5/B7/B8/B28 | B1/B2①/B3/B4/B5/B7/B8/B28 | B1/B3/B5/B7/B8 | B1/B3/B8/B18/B19/B26 |
| LTE-TDD | B40 | B40 | |||
| WCDMA | B1/B5 | B1/B2/B5/B8 | B1/B2/B4/B5/B8 | ||
| GSM/EDGE | B2/B3/B5/B8 | B2/B3/B5/B8 | |||
| GNSS | GPS/GLONASS/BeiDou (Compass)/Galileo/QZSS (Optional) |
GPS/GLONASS/BeiDou (Compass)/Galileo/QZSS (Optional) |
GPS/GLONASS/BeiDou (Compass)/Galileo/QZSS (Optional) |
GPS/GLONASS/BeiDou (Compass)/Galileo/QZSS (Optional) |
|
| Working Area: | Australia | Latin America/Australia/ New Zealand |
Latin America/Australia/ New Zealand |
South Korea | Japan |

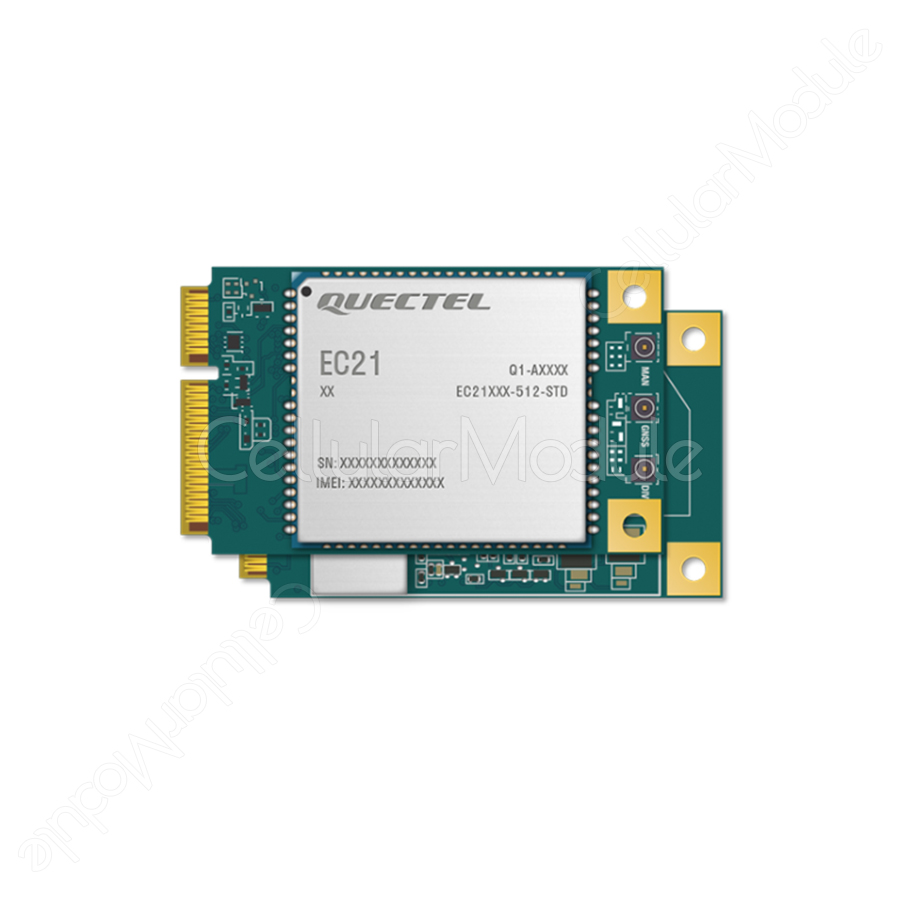

LTE EC21 Mini PCIe Cellular Module
US$37.00
Cost-effective, lower-power LTE connectivity optimized for broadband IoT applications.
Worldwide LTE, UMTS/HSPA(+) and GSM/GPRS/EDGE coverage.
MIMO technology meets demands for data rate and link reliability in modem wireless communication systems.
Multi-constellation GNSS receiver available for applications requiring fast and accurate fixes in any environment
LTE category 1 module

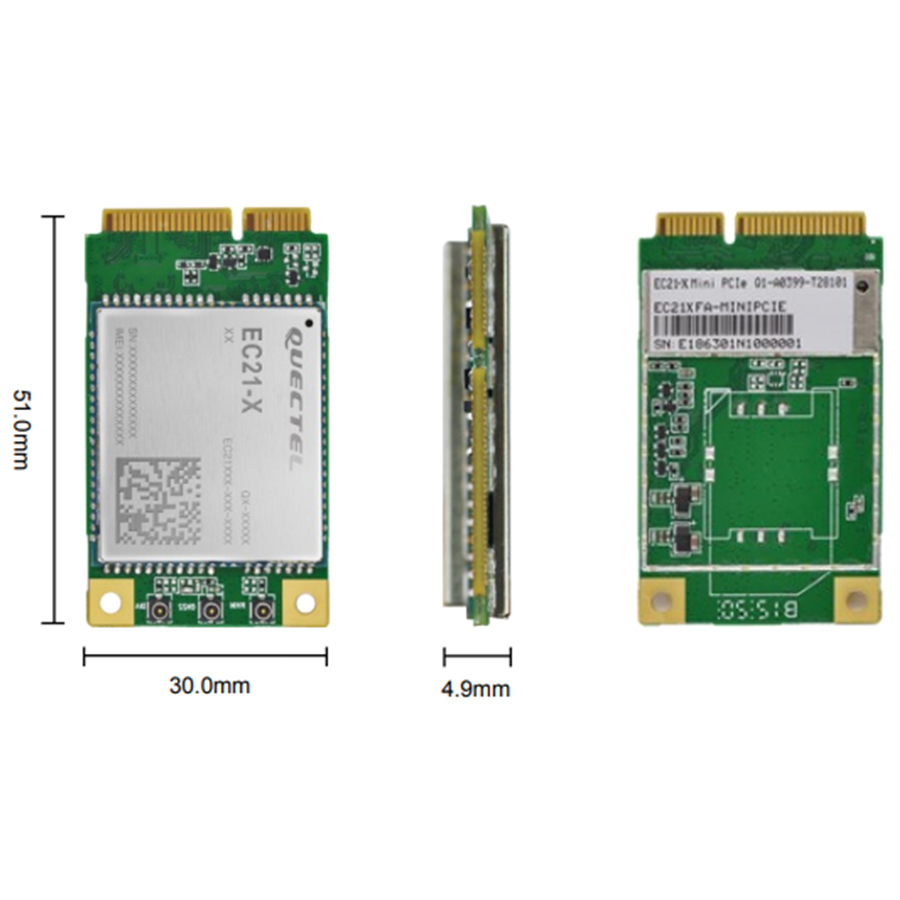

51.0mm × 30.0mm × 4.9mm
Mini PCIe form factor
Max. downlink 10Mbps / 5Mbps uplink under LTE
Extended temperature range of -40°C to +80°C
LTE EC21 Mini PCIe Cellular Module is a series of LTE category 1 modules adopting standard PCI Express® Mini Card form factor (Mini PCIe). Specially optimized for M2M and IoT applications, it features cost-effective, low-power LTE connectivity, and delivers M2M-optimized speeds of 10Mbps downlink and 5Mbps uplink.
These make it ideal for numerous IoT applications that are not reliant on high-speed connectivity but still require the longevity and reliability of LTE networks.
It is backward-compatible with existing EDGE and GSM/GPRS networks, ensuring that it can easily migrate from LTE to 2G or 3G network EC21 Mini PCIe supports Qualcomm® IZat™ location technology Gen8C Lite (GPS, GLONASS, BeiDou/Compass, Galileo, and QZSS).
EC21 Mini PCIe Cellular Module Specifications
| Cellular Modem | EC21-A Mini PCIe, EC21-AU Mini PCIe, EC21-AUT Mini PCIe, EC21-AUX Mini PCIe, EC21-E Mini PCIe, EC21-EU Mini PCIe, EC21-EUX Mini PCIe, EC21-J Mini PCIe, EC21-KL Mini PCIe, EC21-V Mini PCIe |
|---|
