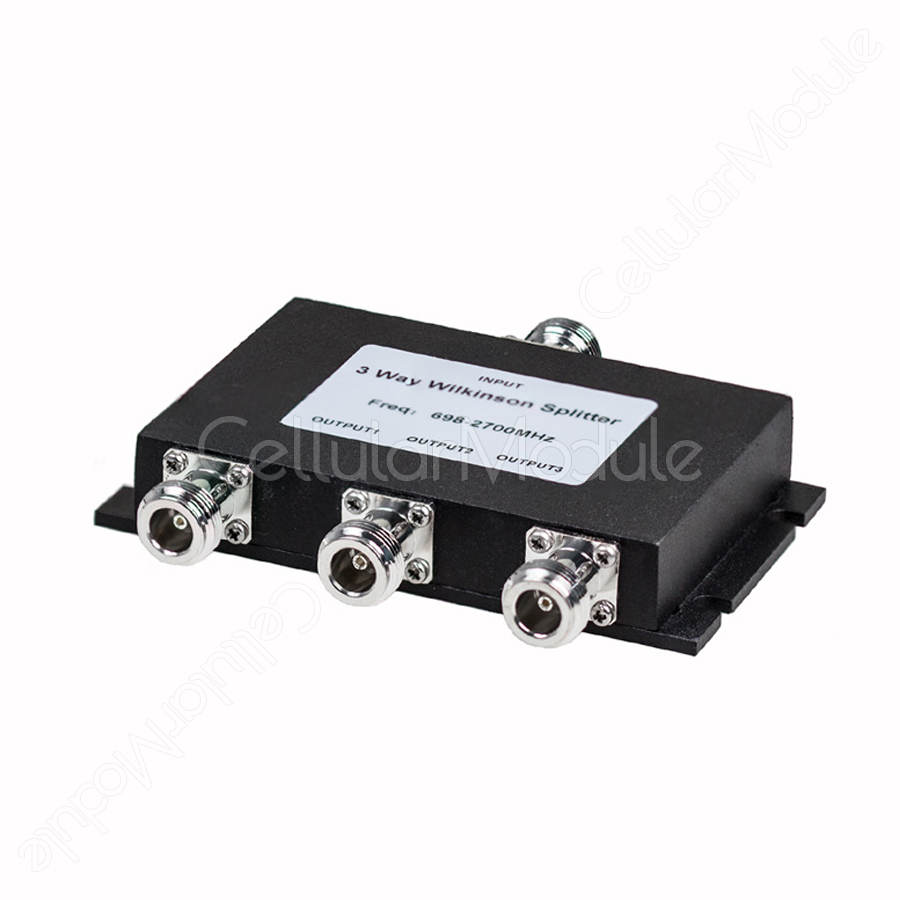

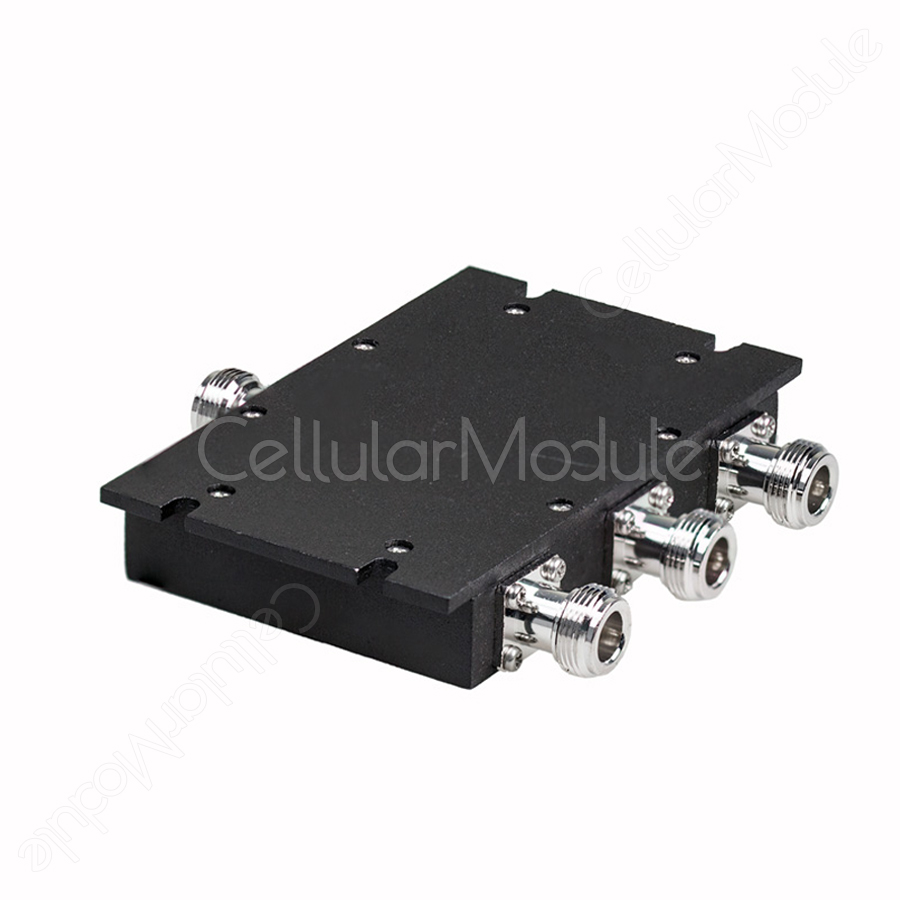

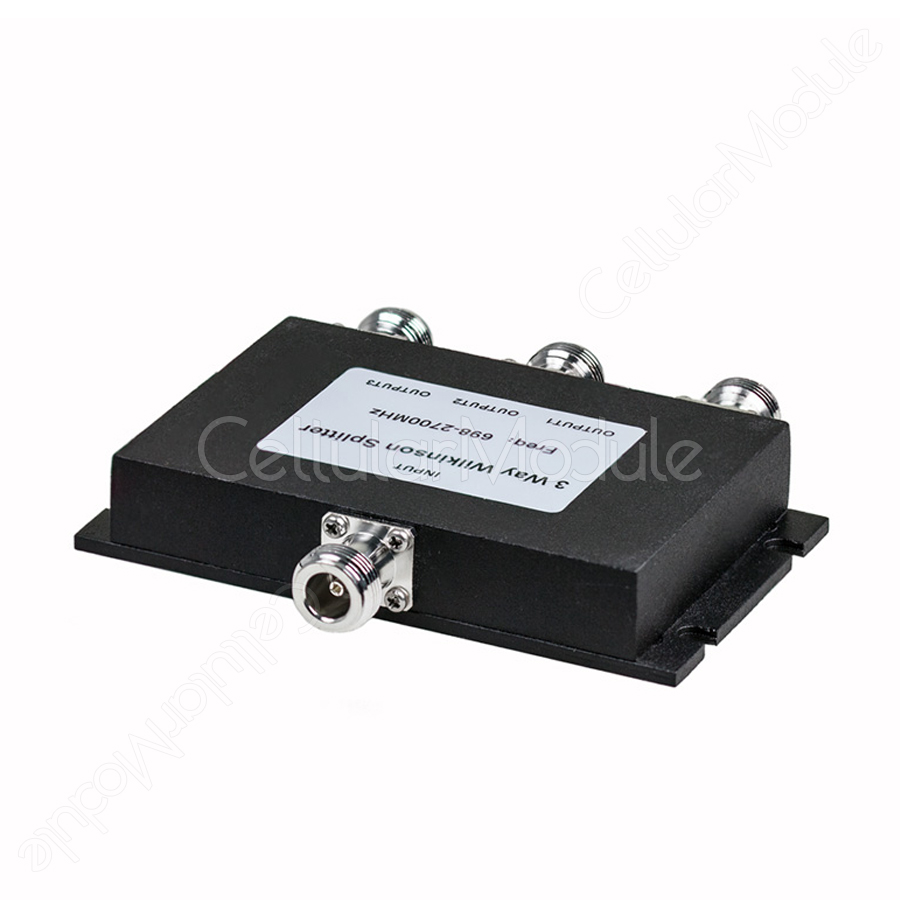

3 Way Micro-Strip Splitter
US$13.00
3 way splitter is used in a signal distribution system to split the amplified signal into three indoor antennas to increase area coverage or to combine the signals into a single output for use as a power combine.
Microstrip Structure
Three Equal Signal Outputs
Low VSWR≤1.3
Low Insertion Loss ≤5.1dB
High Isolation ≥20dB
Wideband Frequency 698~2700MHz
Cellular Mobile Communication

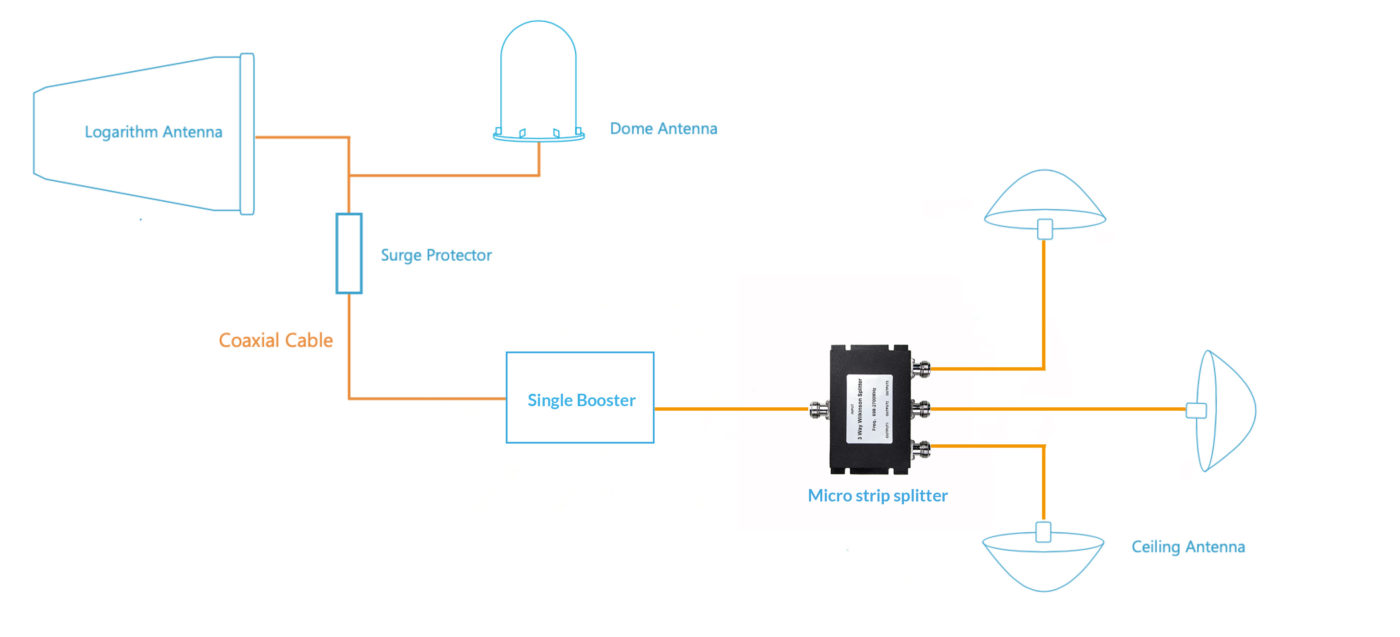

3 way micro-strip splitter is a multi-port device used for splitting an input signal into three outputs. The signal splitter is mostly used for the signal amplifier to split the mobile signal from your repeater’s output to up to three indoor coverage antennas that cover three different areas from a single booster base unit.
Omni ceiling antenna is the best solution for indoor coverage applications with splitters. Installation involves connecting the splitter with a short cable lead to the input of the splitter. The three signal outputs connect with a cable to the indoor coverage antennas.
Expand antenna coverage by making full use of the micro-strip splitter to get a stable signal anywhere in your home or office.
Low VSWR≤1.3
Low Insertion Loss ≤5.1dB
High Isolation ≥20dB
Multiple ports increase area coverage

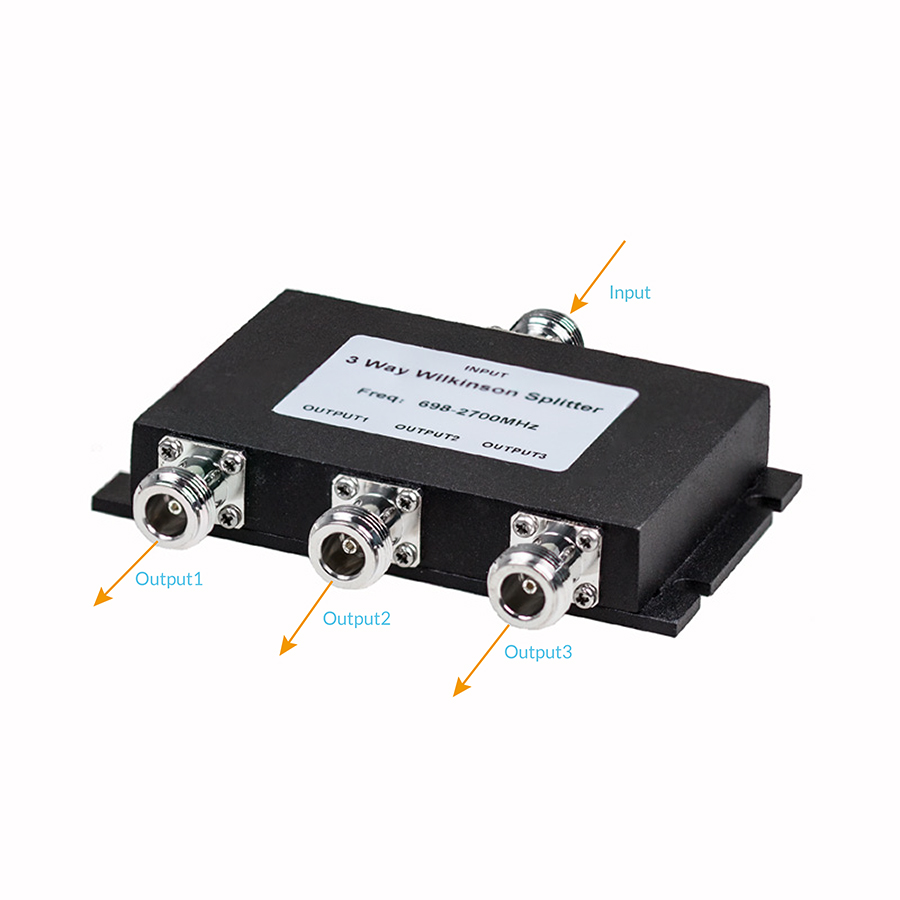

One port is Input, three ports are Output
The connector is N-type Female
Suitable for N-Male coaxial cable
3 Way Micro-Strip Splitter
| Frequency | 698-2700MHz |
| VSWR | ≤1.3 |
| Insertion Loss | ≤5.1 dB |
| Isolation | ≥20dB |
| Maximum Power | 50W |
| Connectors | N-Female |
| Impedance | 50ohms |
| Amplitude balance | ≤0.3dB |
| Phase equilibrium | ≤5° |
| Operating Temperature | -30～+70°C |
| Dimensions | 120x111x20mm |
| Weight | 0.38kg |
| Packing size | 127x117x27mm |
